Traco DC/DC adjustable voltage regulator 5-15V/3A TSR 3-24150

Traco DC/DC adjustable voltage regulator 5-15V/3A TSR 3-24150

Price: 47,43€

Price without tax: 39,20€

Max: 3
Available in our stock

AltiPointsYou'll win 55 AltiPoints by buying this article.
  • Model: TSR3-24150 (41527)

DC/DC adjustable switching regulator / converter providing from 5V to 15Volts in output.

This Traco regulator can be used to supply several accessories of your drone like gimbal stabilization electronics, motors or servos, video transmitters, telemetry modules, LED's or even your ground receiver and video monitor.

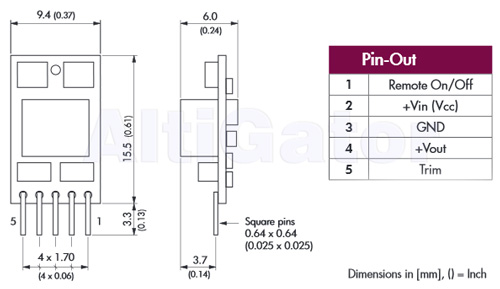

Thanks to its large input (from 10 to 30 Volts) and output (from 5 to 15 Volts) capabilities it can be connected to a LiPo (Lithium Polymere) battery of up to 7S and supply up to 3A of output current. One potentiometer is needed to be connected between the pin number 5 (see siring diagram below) and the ground, in order to regulate the output voltage.

Among the advantages of the Traco TSR 3-24150, it is important to note its versatility with its wide output voltage range, its high capacity relative to its weight & volume and the fact that it doesn't dissipates heat (no need for a heatsink).

Technical specifications

  • Output voltage (DC): 5 to 15 Volts
  • Output current: 3A
  • Input voltage (DC): 10 to 30 Volts
  • Maximum efficiency: 95%
  • Maximum operating temperature: 85°C
  • Minimum operating temperature: -40°C
  • Weight: 2.1 grams
  • Dimensions (in mm): 15.5 x 10.4 x 6

Scope of delivery

  • 1 Voltage regulator
  • 1 10K potentiometer


  • One potentiometer (included with this article) is necessary in order to tune the output voltage. It must be connected between the contact number 5 and the ground.
