Description
This motor is a high torque brushless motor especially developed for multirotors aircrafts.
The U11 is foreseen with long cables (approx. 60cm) and a short shaft in order to perfectly fit on the great majority of frames.
Thanks to it's high torque this motor is capable of driving big propellers with a high level of efficiency.
The U11 is delivered with connectors already soldered on the cables.

Technical specifications
-
No-load speed: 120rpm/V
-
Voltage: 6-12S (LiPo)
-
Load current max. (180S): 80A
-
Power max. (180S): 4000W
-
Short shaft
-
Shaft diameter: 10mm
-
Long cables
-
Weight : 730gr (approx. without the cables)
-

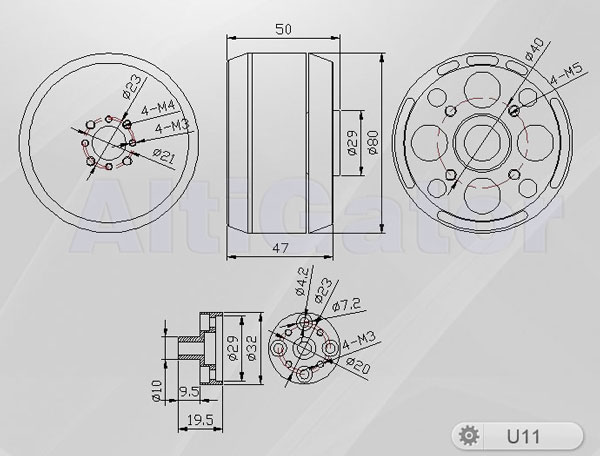

Dimensions (d x h): 80 x 50 mm
-
Propellers to use: from 27" to 28"
-
Connectors already soldered
Scope of delivery
-
1 Motor with its propeller mount
