Power module for PixHawk and APM - XT-60

Power module for PixHawk and APM - XT-60

Price: 29,95€

Price without tax: 24,75€

Max: 2
Available in our stock

AltiPointsYou'll win 35 AltiPoints by buying this article.
  • Model: ARD_POWER_MODULE_XT-60 (40941)

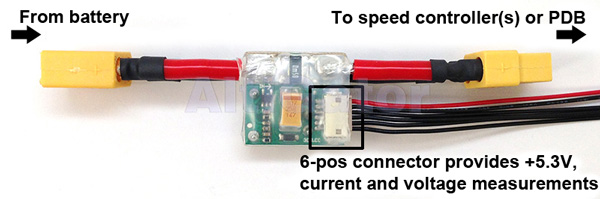

The Power Module for PixHawk and APM is a simple way of providing your PixHawk with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.

The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. This Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

Technical specifications

  • Max input voltage: 18V
  • Max current sensing: 90A
  • Voltage and current measurement configured for 5V ADC
  • Switching regulator outputs 5.3V and 2.25A max
  • 6-pos DF13 cable plugs directly to your PixHawk or APM 2.5's 'PM' connector
  • Connectors: XT-60

Scope of delivery

  • 1 Power module
